Oliveira wire - Europact 6x19 S

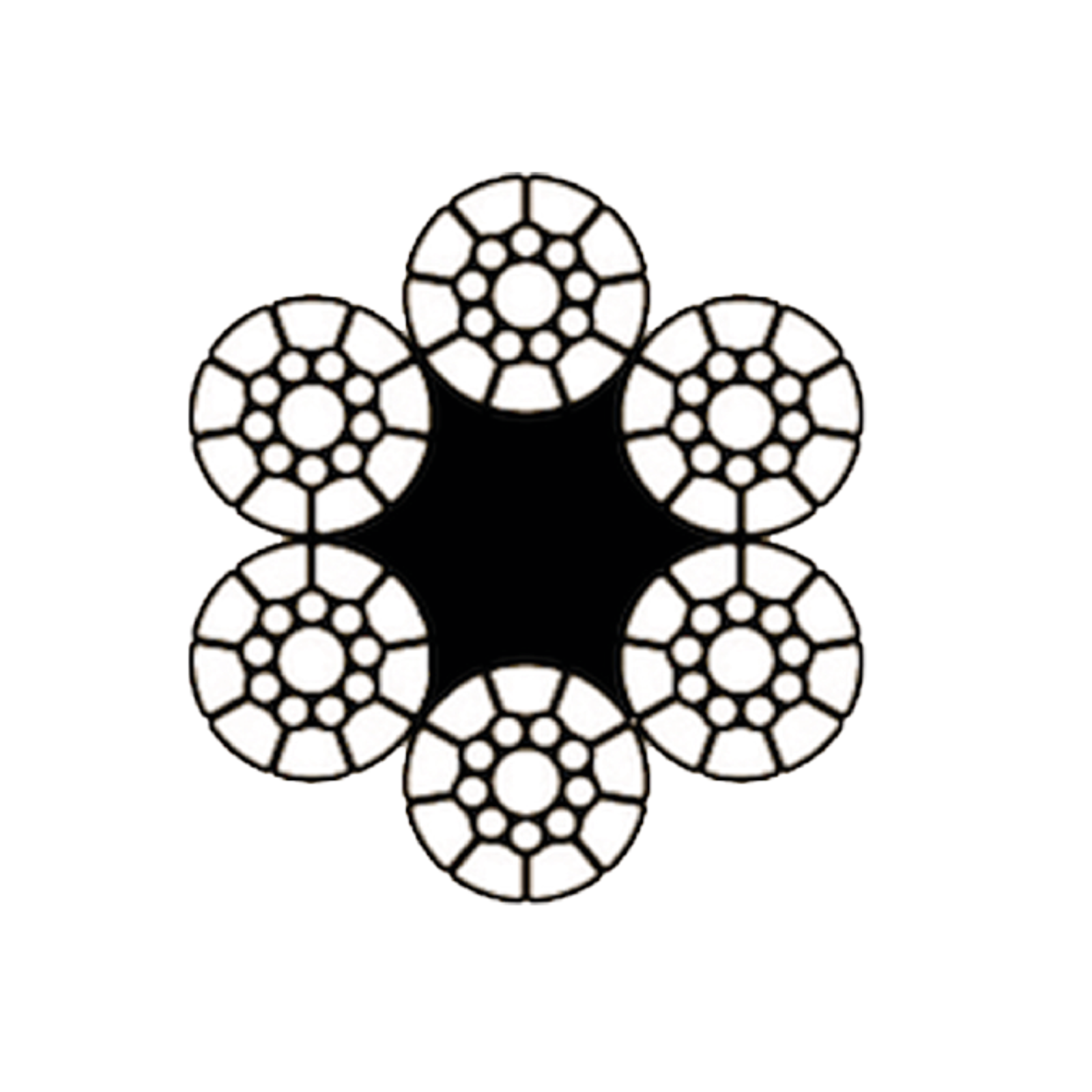

Wire Galvanized compacted steel wire rope 6 x 19 SEALE + FC/wrc.DUAL TENSILE (1570/1770 N/mm2)
FIBER CORE
Diameter mm |
weight kg/100 m |
MBF kN |
|
|
|
|
| 12 | 57 | 88 |
| 14 | 80 | 122 |
| 16 | 104 | 158 |
| 18 | 132 | 200 |
| 20 | 164 | 252 |
| 22 | 196 | 301 |
| 24 | 238 | 361 |
| 26 | 277 | 423 |
| 28 | 312 | 485 |
| 30 | 363 | 557 |
STEEL CORE
Diameter mm |
weight kg/100 m |
MBF kN |
|
|
|
|
| 14 | 90 | 133 |
| 16 | 117 | 175 |
| 18 | 148 | 221 |
| 20 | 184 | 270 |
| 22 | 220 | 323 |
| 24 | 266 | 386 |
| 26 | 309 | 455 |
| 28 | 351 | 527 |
| 30 | 408 | 597 |
